Product Details:
|
Material: | Metals Cast Alloy | Color: | Black. Grey |
---|---|---|---|
Alloy Or Not: | Is Alloy | Application: | Treatment Of Surface |
High Light: | ferro silicon inoculant,calcium silicon alloy,high carbon silicon |

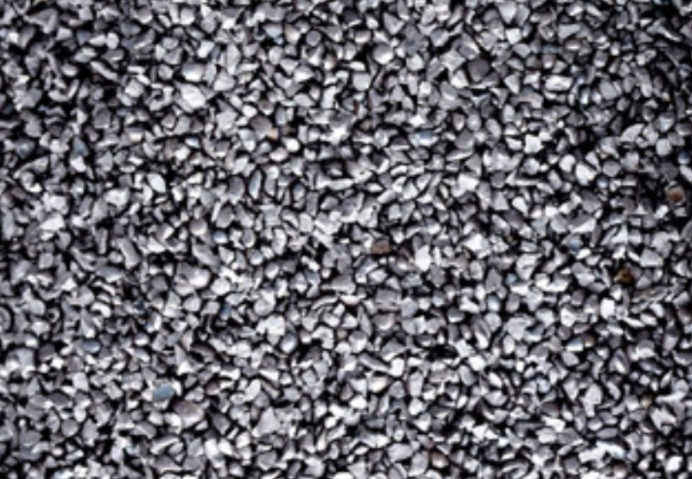

Abrasive Steel Grit Metal Alloy G120 - G10 For Sandblasting Stainless Steel Surface
STEEL GRIT:
Size:
G10, G12, G14, G16, G18, G25, G40, G50, G80, G120
The Major Technological Index:
Products | Steel Grit | |
Chemical Composition | C | 0.70~1.20% |
Mn | 0.60~1.20% | |
Si | 0.40~1.20% | |
S | ≤0.05% | |
P | ≤0.05% | |
Hardness | GP:42~50HRC (399~509HV) GL:56~60HRC (620~713HV) GH:63~66HRC (795~889HV) |
|
Minimum Density | 7.4g/cm3 |
Application:
1. Blast cleaning of cast steel grit:
Used for blast cleaning of casting, die-casting, forging, sand removal of casting, steel plate, H type steel, steel structure.
2. Rust removal of cast steel grit:
Rust removal of casting, forging, steel plate, H type steel, steel structure, descaling of forging.
3. Shot blasting of cast steel grit:
Shot blasting of profile steel, ship board, steel board, steel material.
4. Shot blasting of cast steel grit:
Shot blasting of steel board, profile steel, steel structure.
5. Pre-treatment of cast steel grit:
Pre-treatment of surface, steel board, profile steel, steel structure, before-painting.
Steel Grit Types:
GP: Angular when new, this grit rapidly rounds off in use and its particularly suited descaling applications.
GL: Although harder then GP steel grit, also loses its sharp edges during shot basting and is particularly suited to descaling and surface preparation applications.
GH: Having maximum hardness, GH always remains angular in its operating mix. These abrasive are particularly effective in surface treatment processes and produce a uniform, etched finish, GH angular grit should only be used in wheel machines where working requirements take precedence over cost price considerations (for example with rolling mill cylinders or when a special finish is needed). For use mainly with compressed air equipment
Product Standard:
1) American automobile engineer's association "SAE J827 Cast steel shot standard"
2) China black metallurgy profession"YB/T5149-93 cast steel shot"
Package:
25kgs/bag, 40bags/ton/pallet
25kgs/bag, 40bags/ton/jumbo bag
Cast Steel Grit Grain degree distribute:
The eyes count | mm | sizes | |||||||||
2.5 | 2.0 | 1.7 | 1.4 | 1.2 | 1.0 | 0.7 | 0.4 | 0.3 | 0.2 | ||
7 | 2.80 | all pass |
|||||||||
8 | 2.36 | all pass |
|||||||||
10 | 2.00 | 80% min |
all pass |
||||||||
12 | 1.70 | 90% min |
80% min |
all pass |
|||||||
13 | 1.40 | 90% min |
80% min |
all pass |
|||||||
16 | 1.18 | 90% min |
75% min |
all pass |
|||||||
18 | 1.00 | 85% min |
75% min |
all pass |
|||||||
20 | 0.850 | ||||||||||
25 | 0.710 | 85% min |
70% min |
all pass |
|||||||
30 | 0.600 | ||||||||||
35 | 0.500 | 80% min |
|||||||||
40 | 0.425 | 70% min |
all pass |
||||||||
45 | 0.355 | ||||||||||
50 | 0.300 | 80% min |
65% min |
all pass |
|||||||
80 | 0.180 | 75% min |
65% min |
||||||||
120 | 0.125 | 75% min |
60% min |
||||||||
200 | 0.075 | 70% min |
|||||||||
325 | 0.045 | ||||||||||
SAE Standard | G-10 | G-12 | G-14 | G-16 | G-18 | G-25 | G-40 | G-50 | G-80 | G-120 |
FAQ:
1. Can you provide free samples?
Yes, can forward free samples less than 500gs if possible.
2. What's the MOQ do you carrying out?
We accept MOQ 1000kgs normally.
3. What standards are you carrying out for your products?
Our products reach SAE standard. We produce according to the ISO9001 and ISO14001 rules.
4. What is the term of payment?
T/T or 100% Irrevocable L/C at sight
5.To which countries and regions are you exporting please?
About 40 countries and regions all around the world and more than 8000 customers, such as, the USA, France, Singapore, Australia, Middle East, Brazil, Peru and so on.
6. What is your term of delivery?
FOB, CFR, CIF, EXW
7. Do you test all your goods before delivery?
Yes, all goods will be test before delivery.
8. What's your year productivity?
Our yearly productivity: 80 thousand tons. We have three automatic production lines for steel shot and steel grit production. So we can arrange the delivery very fast.
