Product Details:
|
| Color: | Black | Shape: | Round Bar |
|---|---|---|---|
| Application: | Industry, Casting, Metallurgy & Foundry, Steel Making And Other, Metallurgy | ||
| High Light: | uhp graphite electrode,electric arc furnace electrodes |
||

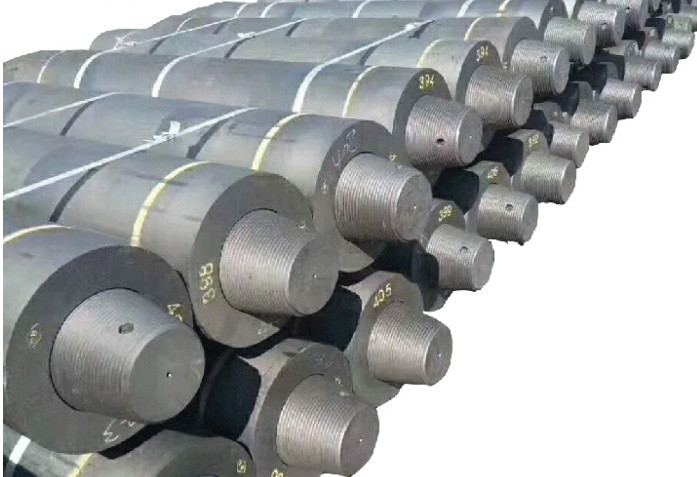

China HP Graphite Electrode with nipples ,Graphite Electrode , HP(High Power) Graphite Electrode ,
Product detail
Graphite electrode raw materials use the domestic petroleum coke and pitch coke. HP grade graphite electrode add 30% imported needle coke. UHP graphite electrode use more than 80% imported needle coke. They are widely used in electric arc furnace, ladle furnace for the production of alloy steel,metal and nonmetallic materials. They are characterized by low resistivity, good electric and thermal conductivity, high resistance to oxidation and thermal shock, high mechanical strength, etc
Specification list
| Item | unit | Dia 200-300 | Dia 300-600 | ||
| electrode | nipple | electrode | nipple | ||
| Electrical resistivity | μΩm | 8.5 | 6.5 | 8.5 | 6.5 |
| Bulk density | g/cm3 | 1.53 | 1.69 | 1.52 | 1.69 |
| Flexural strongth | Mp | 8.5 | 15 | 7.0 | 15 |
| Elastic modulus | Gp | 9.3 | 14 | 9.3 | 14 |
| Ash | % | 0.5 | 0.5 | 0.5 | 0.5 |
| CET(100℃-600℃) | ×10-6/℃ | 2.9 | 2.8 | 2.9 | 2.8 |
